Sika Top Armatec 110 EpoCem
Sika Top Armatec 110 EpoCem
SikaTop® Armatec®-110 EpoCem® is a cementitious epoxy resin compensated 3-component coating with corrosion inhibitor, used as a bonding primer and reinforcement corrosion protection in concrete repair. Features EpoCem® technology for excellent adhesion to concrete and steel, with good resistance to water and chloride penetration. Meets EN 1504-7. Packaging: 20 kg (3 components). Supplied by Wahhing Waterproofing Materials.
SikaTop® Armatec®-110 EpoCem® — Bonding Primer and Reinforcement Corrosion Protection
SikaTop® Armatec®-110 EpoCem® is a cementitious epoxy resin compensated 3-component coating material with corrosion inhibitor, used as a bonding primer and for reinforcement corrosion protection in concrete repair works. Featuring Sika's proprietary EpoCem® technology, it combines the compatibility of cementitious materials with the high-performance bonding of epoxy resin. Meets the requirements of EN 1504-7.
Key Features
- Contains EpoCem® technology — improved bonding agent
- Extended open times for repair mortars
- Compatible with most Sika MonoTop® repair mortars
- Excellent adhesion to concrete and steel
- Contains corrosion inhibitor
- Certified for application under dynamic load conditions
- Good resistance to water and chloride penetration
- High shear strength
- Long pot life (~3 hours at +20°C)
- Easy to mix
- Can be brushed on or applied using spray gun
- Listed on Eco-Product Directory (Application No: PL-01457-2022)
Applications
- Control of anodic areas (Principle 11, method 11.1, EN 1504-9)
- Corrosion protection coating for reinforcement in concrete repair
- Bonding primer on concrete and mortar substrates
Why Choose SikaTop Armatec 110 EpoCem?
- EpoCem® Technology: Combines epoxy resin and cement advantages for superior bonding far beyond ordinary primers
- Dual Purpose: Functions as both reinforcement corrosion protection and concrete bonding primer
- System Compatibility: Fully compatible with Sika MonoTop® repair mortar system
- Standards Compliant: Meets EN 1504-7 requirements, certified for dynamic load conditions
- Eco-Certified: Listed on Eco-Product Directory for green building projects
- Flexible Application: Brush or spray gun application with ~3 hour pot life

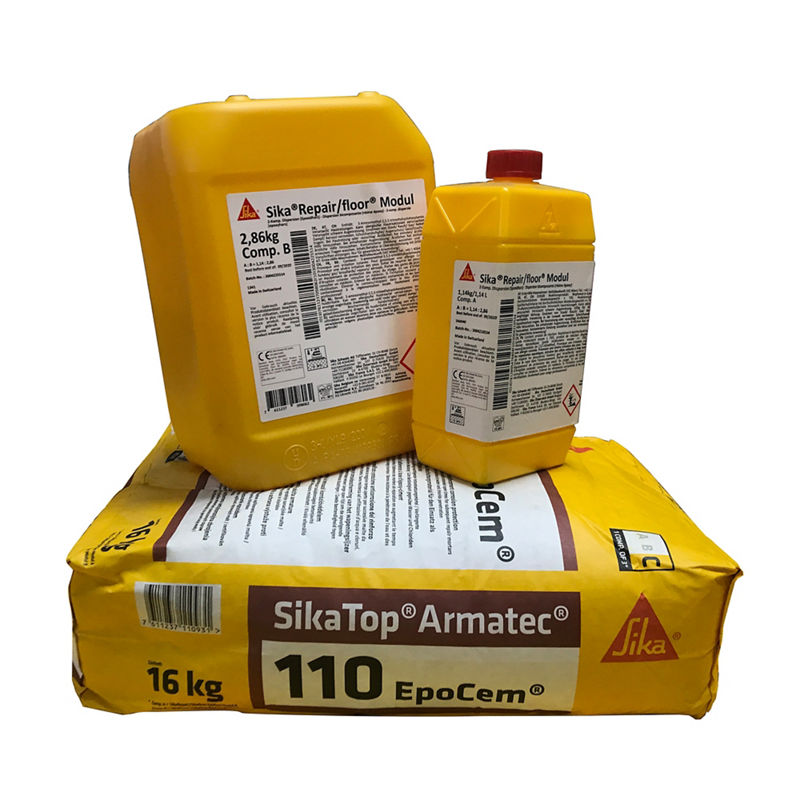

Packaging
| Component | Appearance | Weight |
|---|---|---|
| Component A | White liquid | 1.14 kg |
| Component B | Colourless liquid | 2.86 kg |
| Component C | Dark grey powder | 16 kg |
| Total | Mixed: dark grey | 20 kg |
Technical Specifications
| Property | Value | Standard |
|---|---|---|
| Chemical Base | Portland cement, epoxy resin, selected aggregates and additives | — |
| Density (A+B+C mixed) | ~2.0 kg/l at 23°C | — |
| Tensile Adhesion Strength (28 days) | ≥ 1.5 N/mm² | EN 1542 |
| Shear Adhesion | Pass | EN 15184 |
| Coefficient of Thermal Expansion | ~18 × 10⁻⁶ 1/K | EN 1770 |
| Diffusion Resistance to Water Vapour | μH₂O ~500 | — |
| Diffusion Resistance to Carbon Dioxide | μCO₂ ~7300 | — |
| Corrosion Test | Pass | EN 15183 |
| Shelf Life | 12 months | — |
Application Data
| Property | Value |
|---|---|
| Consumption — Corrosion Protection | ~2 kg/m² (2 layers × ~1 mm, total ~2 mm thick) |
| Consumption — Bonding Primer | > 1.5–2.0 kg/m²/mm (dependent on substrate) |
| Application Temperature (air / substrate) | +5°C to +30°C |
| Pot Life | ~3 hours at +20°C |
Maximum Waiting Time Before Repair Mortar Application
| Temperature | Max. Waiting Time |
|---|---|
| +5°C | 6 hours |
| +10°C | 5 hours |
| +20°C | 2 hours |
| +30°C | 1 hour |
Important Notes
- DO NOT add water
- Avoid application in direct sun and/or strong wind and/or rain
- Apply only to sound, prepared substrates
- NOT recommended for use with fast-setting concrete or mortars (e.g. Sika MonoTop®-211 FG / RFG)
- Concrete substrate must be clean, pre-wetted to a dark matt appearance without standing water
- Steel reinforcement must be cleaned to SA 2 (per ISO 8501-1) using abrasive blasting or high-pressure water
- Mix with low-speed drill (< 250 rpm): combine A+B for 30 seconds, slowly add C, mix for minimum 3 minutes, stand 5–10 minutes until brush-able, weakly dripping consistency
- Corrosion protection: apply first layer ~1 mm, apply second layer when first is hard to fingernail (~2–3 hours at +20°C), apply repair mortars wet on dry
- Bonding primer: brush or spray onto substrate filling all pores (min. 0.5 mm), apply repair mortars wet on wet
- Clean tools immediately with water — hardened material can only be removed mechanically
FAQ
What is SikaTop Armatec 110 EpoCem used for?
SikaTop Armatec 110 EpoCem is a 3-component cementitious epoxy resin coating with corrosion inhibitor. It has two main uses: coating exposed reinforcement for corrosion protection, and serving as a bonding primer for concrete repair works. It is not a general-purpose epoxy adhesive and is not suitable for crack injection or steel plate bonding.
How do I mix and apply SikaTop Armatec 110 EpoCem?
Mix the three components (A white liquid + B colourless liquid + C grey powder) with a low-speed drill. Pour A and B into a container, mix for 30 seconds, then slowly add C powder. Mix for at least 3 minutes and let stand 5–10 minutes. Apply with a medium hard brush or spray gun. For rebar corrosion protection, apply two coats of ~1 mm each. Pot life is approximately 3 hours at +20°C. Do NOT add water.
What repair mortars is it compatible with?
SikaTop Armatec 110 EpoCem is compatible with most Sika MonoTop® repair mortars. It is NOT recommended for use with fast-setting mortars such as Sika MonoTop®-211 FG / RFG. Always apply repair mortars while the coating is still wet (wet-on-wet for bonding primer use).
What packaging is available?
Available as a 20 kg set (Component A 1.14 kg + Component B 2.86 kg + Component C 16 kg). Contact us via WhatsApp for pricing, Mong Kok store pickup, and Hong Kong delivery.
