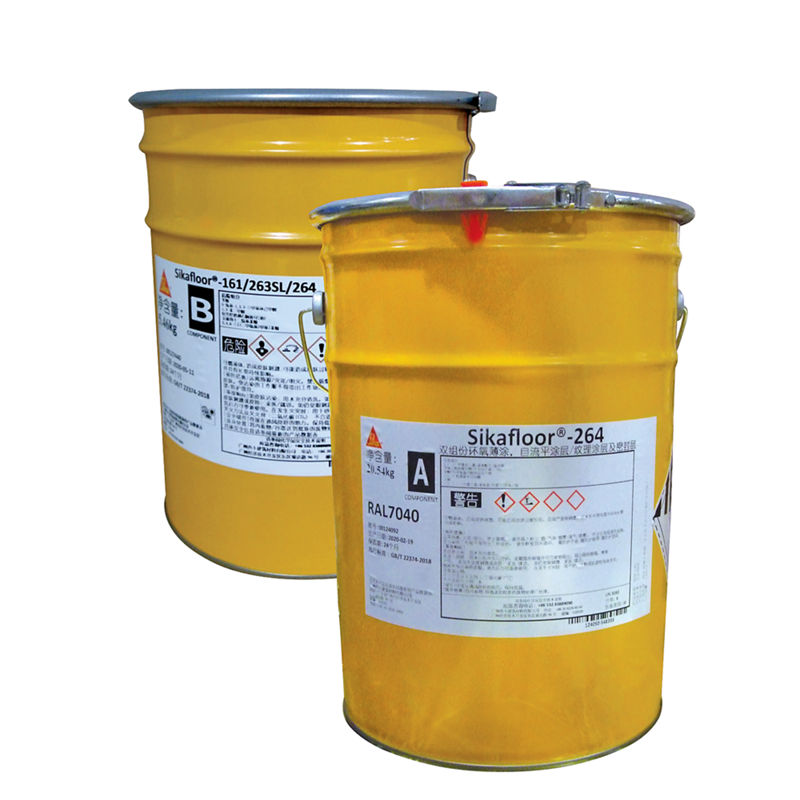

Sikafloor 264 — 2-Part Epoxy Roller and Seal Coat
Sikafloor 264 is a two-part, total solid coloured epoxy resin for roller coating and seal coat applications on broadcast systems. Suitable for normal to medium heavy-wear environments including warehouses, workshops, garages, car parks, and food industry facilities. With a compressive strength of approx. 108 N/mm² and HKHA/MTS specification compliance, it delivers exceptional mechanical performance. Requires priming with Sikafloor 161 or Sikafloor 156.
Key Features
- Good chemical and mechanical resistance
- Easy roller application
- Liquid / water proof
- Gloss finish
- Slip resistant surface possible
- Dust-proof sealer
- Solid content approx. 100% by weight and volume
- Cleanroom certified — ISO 14644-1 Class 4 and GMP Class A
- LEED v2009 IEQc 4.2 compliant (Low-Emitting Materials)
- Listed on the Eco-Product Directory for green building initiatives
Applications
- Roller coat for concrete and cement screeds — storage halls, assembly halls, maintenance workshops
- Garages and loading ramps
- Seal coat for broadcast systems — multi-storey and underground car parks
- Maintenance hangars
- Wet process areas — beverage and food industry
- Cleanroom-grade flooring applications
- Dust-proof floor sealing
Packaging
| Component | Pack Size |
|---|---|
| Part A (Resin) | 20.54 kg |
| Part B (Hardener) | 5.46 kg |
| Part A+B (Set) | 26 kg/set |
Available RAL colours: 1001, 6021, 7030, 7032, 7035, 7037, 7038, 7040, 7042, 9002. Other colours on request.
Technical Data
| Property | Value | Standard |
|---|---|---|
| Chemical Base | Epoxy | — |
| Mixing Ratio (by weight) | Part A : Part B = 79 : 21 | — |
| Density (Part A) | ~1.64 kg/l | DIN EN ISO 2811-1 |
| Density (Part B) | ~1.00 kg/l | DIN EN ISO 2811-1 |
| Density (Mixed) | ~1.40 kg/l | DIN EN ISO 2811-1 |
| Solid Content by Weight | ~100% | — |
| Solid Content by Volume | ~100% | — |
| Shore D Hardness | ~76 (7 days / +23 °C) | DIN 53 505 |
| Abrasion Resistance | ~35 mg (CS 10/1000/1000, 7 days / +23 °C) | DIN 53109 |
| Abrasion Resistance (ASTM) | ~54 mg (CS 17/1000/1000) | ASTM D4060-10 |
| Compressive Strength | ~108 N/mm² (7 days / +23 °C) | BS 6319 : Part 2 : 1983 |
| Tensile Strength in Flexure | ~39.6 N/mm² (7 days / +23 °C) | BS 6319 |
| Tensile Strength | ~13.5 N/mm² (7 days / +23 °C) | BS 6319 : Part 7 |
| Tensile Adhesion Strength | ~3.6 N/mm² (HKHA/MTS Spec); > 1.5 N/mm² (failure in concrete) | HKHA/MTS Clause 2.1.14; ISO 4624 |
| Shelf Life | 24 months from date of production | — |
Application Data
| Property | Value |
|---|---|
| Consumption (roller coating) | ~0.25–0.3 kg/m² |
| Consumption (self-smoothing) | ~0.9–1.2 kg/m²/mm |
| Ambient Air Temperature | +10 °C to +30 °C |
| Substrate Temperature | +10 °C to +30 °C |
| Relative Air Humidity | 80% r.h. max. |
| Substrate Moisture Content | < 4% by weight |
| Pot Life (+20 °C) | ~25 minutes |
Curing Time (+20 °C substrate temperature)
| Stage | Time |
|---|---|
| Foot Traffic | ~24 hours |
| Light Traffic | ~4 days |
| Full Cure | ~7 days |
Thermal Resistance
| Exposure | Dry Heat |
|---|---|
| Permanent | +50 °C |
| Short-term max. 7 days | +80 °C |
| Short-term max. 12 hours | +100 °C |
Short-term moist/wet heat up to +80 °C where exposure is occasional (e.g. steam cleaning).
FAQ
What primer is required for Sikafloor 264?
Use Sikafloor 161 or Sikafloor 156 as the primer coat. The primer ensures optimal bonding between the topcoat and the concrete substrate.
What is the difference between Sikafloor 264 and Sikafloor 263SL?
Sikafloor 264 is a roller-applied epoxy that also serves as a seal coat for broadcast systems, while Sikafloor 263SL is self-levelling for smooth seamless finishes. Sikafloor 264 has significantly higher compressive strength (~108 N/mm² vs ~50 N/mm²), higher tensile flexural strength (~39.6 vs ~20 N/mm²), and meets a higher cleanroom classification (Class 4 vs Class 5).
How long before the floor can be used after application?
At +20 °C, the floor is walkable after approx. 24 hours, can withstand light traffic after approx. 4 days, and reaches full cure after approx. 7 days. Actual times vary with ambient temperature and humidity.
