Sika SikaHyflex 250 Facade
Sika SikaHyflex 250 Facade
SikaHyflex-250 Facade — Low-Modulus Sealant for Concrete, Masonry & EIFS Facades
SikaHyflex®-250 Facade is a 1-component, moisture-curing, low-modulus elastic joint sealant based on i-Cure® polyurethane technology. Designed for elastic joint sealing and waterproofing of movement and connection joints in building envelopes, it is particularly suitable for EIFS facades due to its very low modulus, which minimises stress on the substrate.
Key Features
- 1-component, moisture-curing, low-modulus elastic sealant
- Exceptional movement capability: +100/-50% (ASTM C 719) / ±25% (ISO 9047)
- Low stress to substrate — ideal for EIFS and thin-panel facades
- Bubble-free curing
- Solvent-free, very low emissions (Emicode EC1PLUS R)
- Excellent weathering resistance (rating 10, ISO/DIS 19862)
- Good adhesion to many substrates without primer
- Over-paintable (after full cure)
- LEED v4 EQc 2 compliant
Applications
- EIFS facade joints — expansion and connection joints in exterior insulation systems
- Concrete and precast concrete facade joints
- Masonry facade expansion joints
- Curtain wall weather sealing
- Door and window perimeter joints
- Architectural decorative element joints
Technical Data
| Property | Value |
|---|---|
| Chemical Base | i-Cure® Technology polyurethane |
| Standards | EN 15651-1 F EXT-INT CC 25 LM / ISO 11600 F 25 LM / DIN 18540 F / ASTM C 920 Class 100/50 |
| Density | ~1.35 kg/l |
| Movement Capability | ±25% (ISO 9047) / +100/-50% (ASTM C 719) |
| Shore A Hardness | ~20 (after 28 days) |
| Secant Tensile Modulus | ~0.30 N/mm² (23°C) / ~0.60 N/mm² (-20°C) |
| Elongation at Break | ~800% |
| Elastic Recovery | ~80% |
| Tear Propagation Resistance | ~5.0 N/mm |
| Resistance to Weathering | 10 (ISO / DIS 19862) |
| Service Temperature | -40°C to +70°C |
| Skin Time | ~70 minutes (23°C / 50% r.h.) |
| Tooling Time | ~65 minutes (23°C / 50% r.h.) |
| Curing Rate | ~3 mm / 24 hours (23°C / 50% r.h.) |
| Colours | Dark Grey, Concrete Grey, Black, Dark Amber, White, Sandstone |

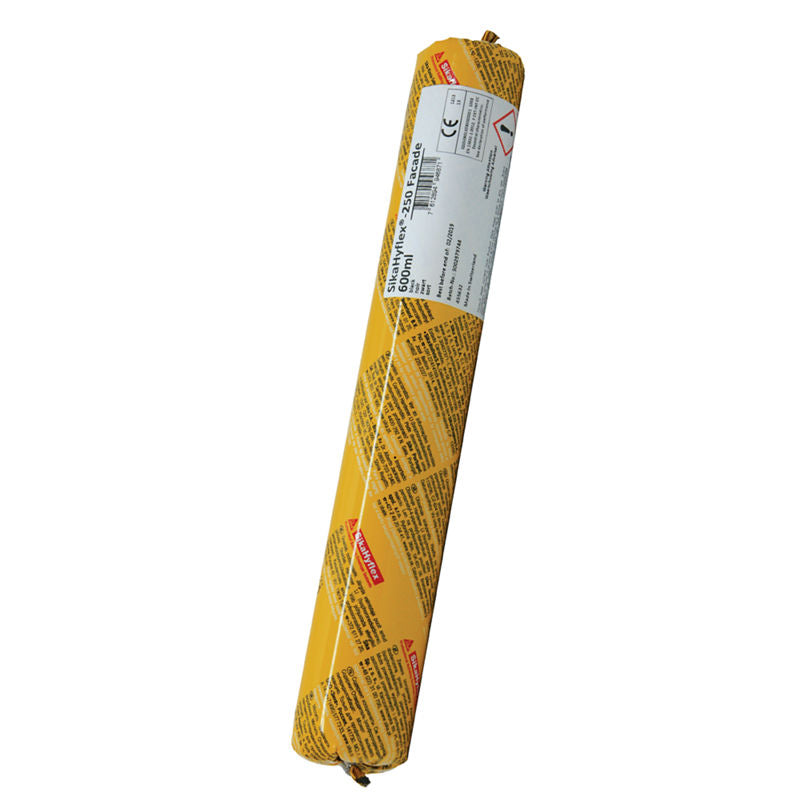

| Packaging | 600 ml sausage, 20 per box |
| VOC Content | Max. 10 g/L |
| Shelf Life | 15 months (unopened, dry storage away from sunlight) |
Limitations
- Not suitable for swimming pools or surrounding areas
- Not for joints under water pressure or permanent water immersion
- Not for use on bituminous substrates, natural rubber, or EPDM rubber
- Test compatibility before use on natural stone
- Do not expose uncured product to alcohol-containing materials
